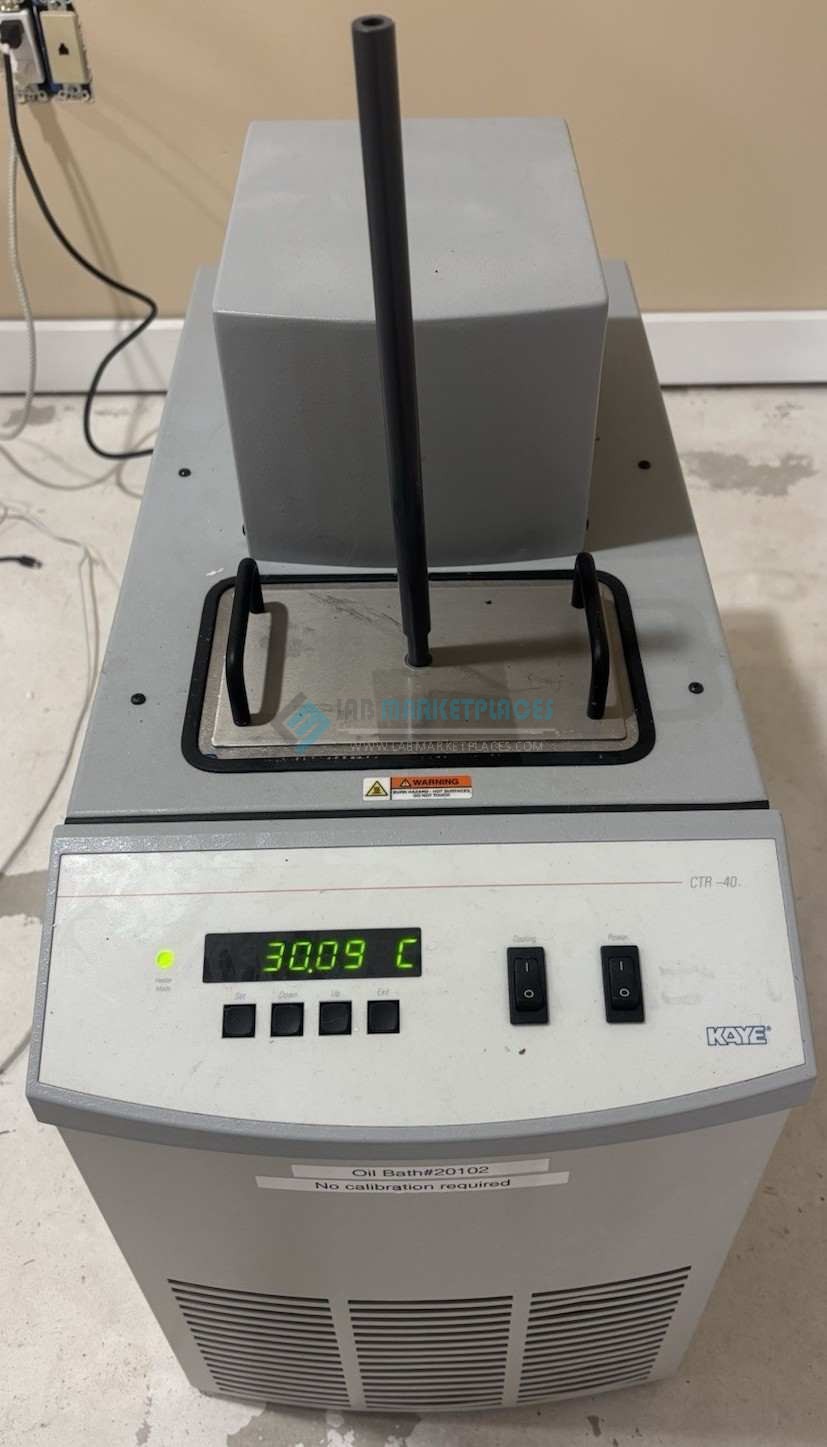

HOT SALE Kaye CTR-40 Portable Calibration Bath. It a convenient tool for precision temperature control in a wide range of applications.

The Kaye CTR-40 Portable Calibration Bath is a compact, high-precision liquid bath designed for calibrating and verifying temperature sensors, primarily for the Kaye ValProbe RT/ValProbe systems. It operates in a temperature range of -40° C to 150° C and provides automated calibration.

Key Specifications

• Temperature Range : -40 to 150° C
• Temperature Stability :
  • ± 0.005° C at -40° C (using Ethanol)
  • ± 0.005° C at 25° C (using Water)
  • ± 0.007° C at 150° C (using 5012 Oil)
• Resolution : Indicates temperature to 0.01° C

Capacity & Operation

• Tank Capacity : 9.2 liters (2.4 gallons)
• Access Opening : 172 mm × 94 mm (6.8″ × 3.7″)
• Logger Capacity : Accommodates up to 10 ValProbe loggers or 16 rigid ValProbe RT loggers simultaneously

Rates & Power

• Cool-Down Time : 110 minutes from 25° C to -40° C
• Heat-Up Time : 60 minutes from 25° C to 150° C
• Power Requirements : 115V (60 Hz) or 230V (50 Hz), approx. 1,400 Watts
• Physical Dimensions : 584 mm × 305 mm × 622 mm (H × W × D)
