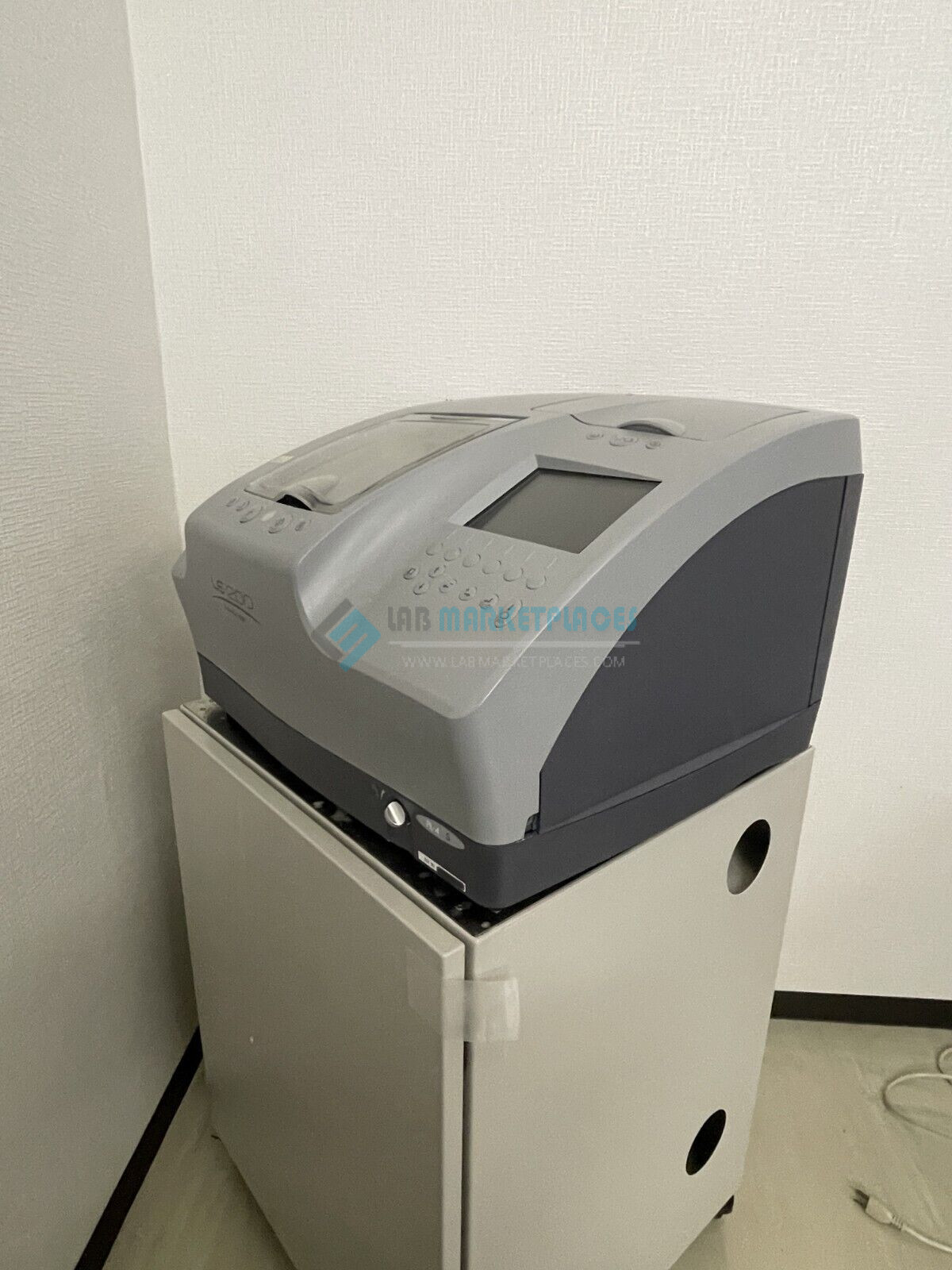

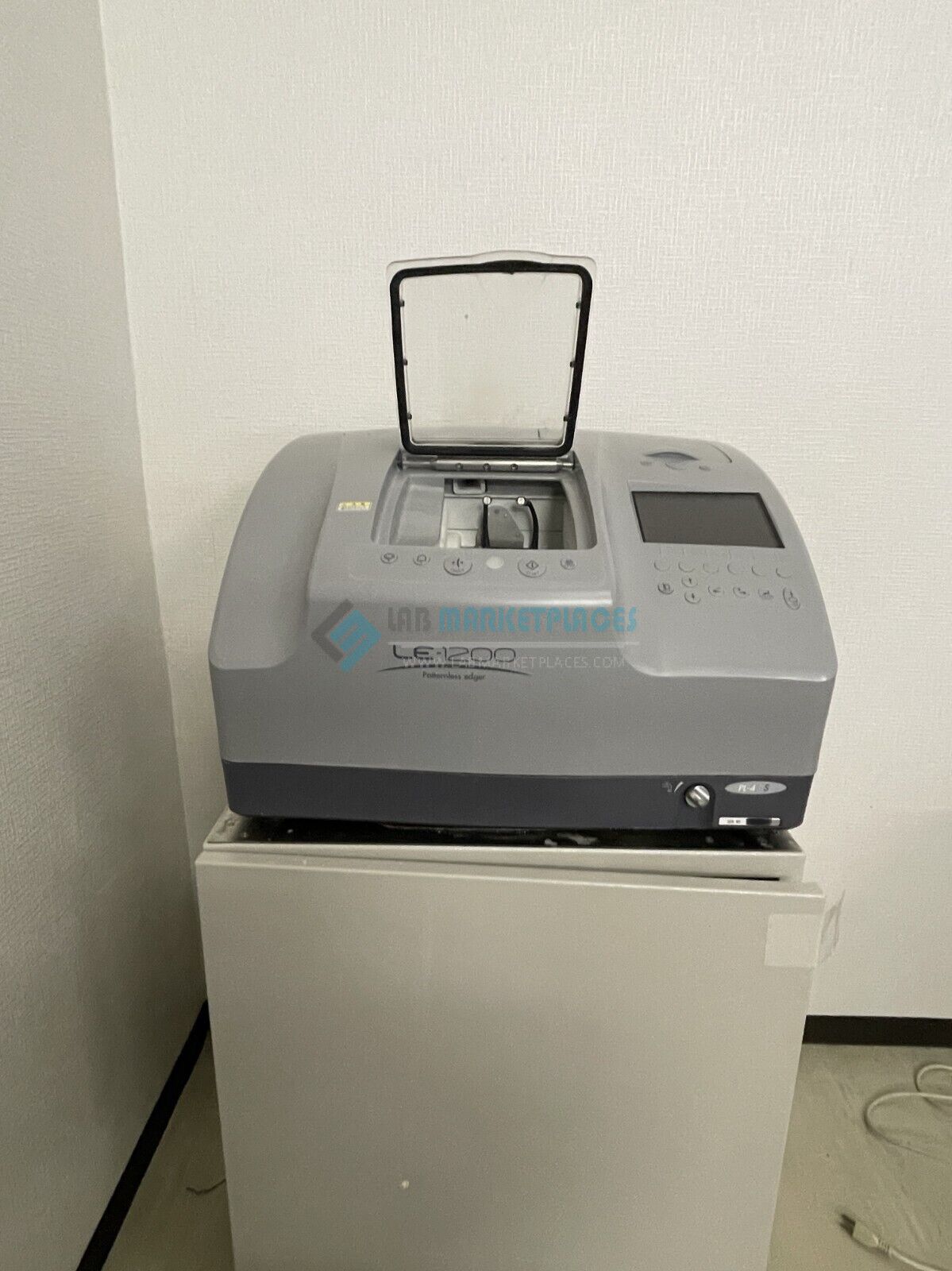

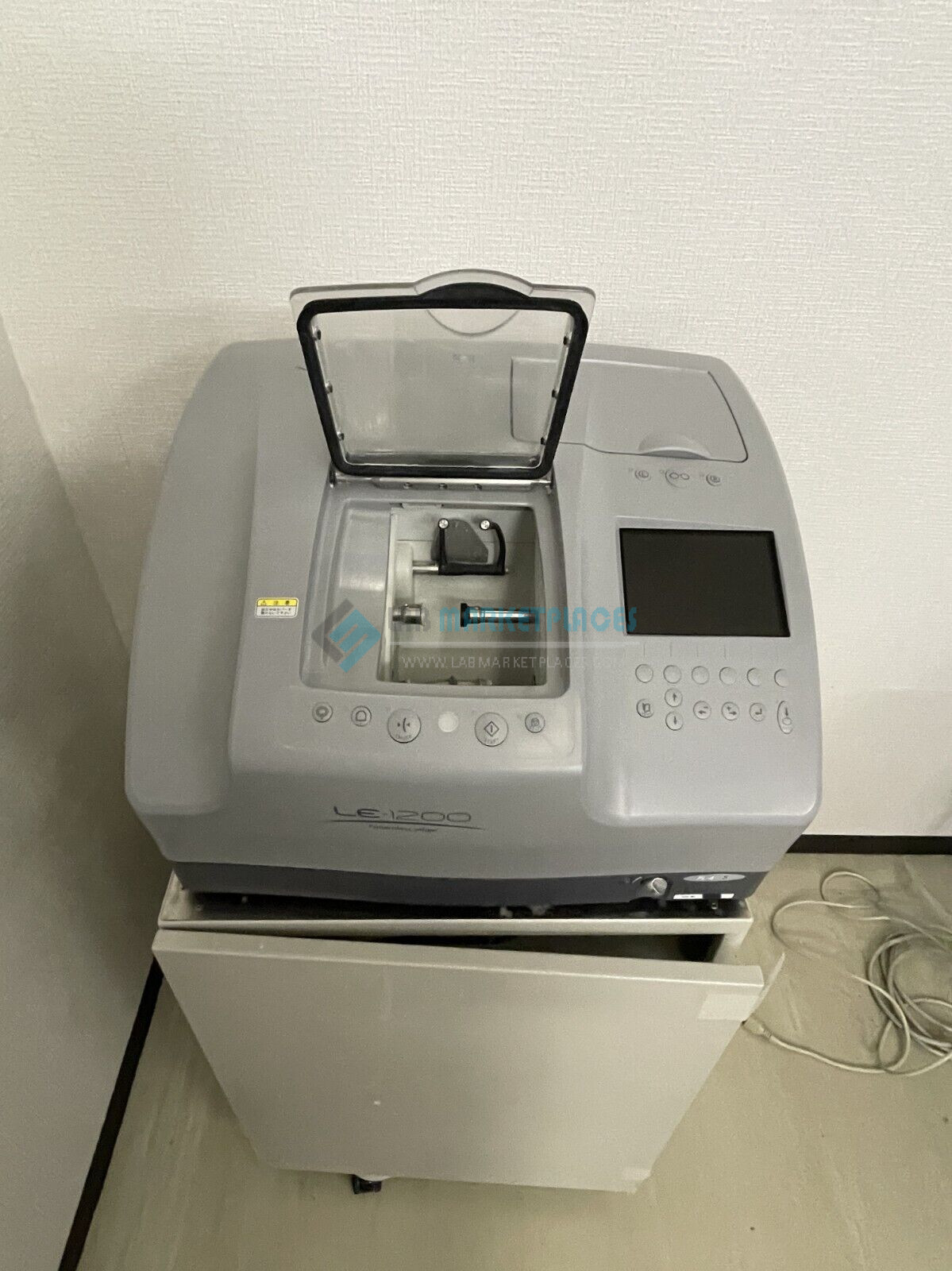

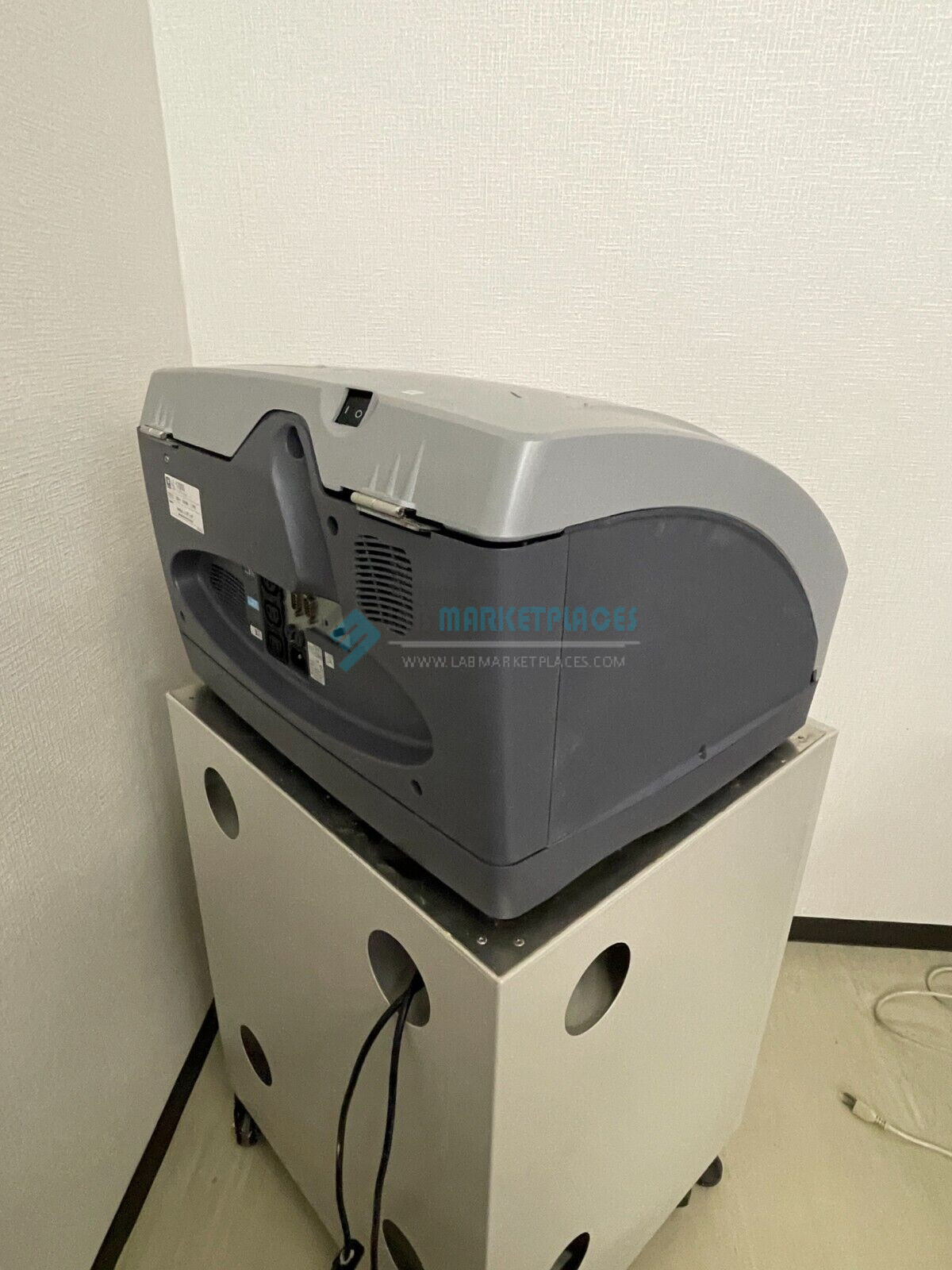

NIDEK LE 1200 Patternless Edger
The industry favorite, the NIDEK LE 1200 Patternless Edger, was created out of a symbolic and trusted relationship with optical specialists. The essence of the LE series has grown since the initial model and is now a highly sought-after standard. The LE-1200 offers dependable quality with innovative technology, processing 15% faster than earlier models and including a sophisticated tracer that can handle a variety of frames.

Nidek LE-1200 Specifications:

• Grinding system: Patternless

Mode:

• Beveling (automatic, guided)
• Flat edging (polishing, safety beveling, grooving)*1
• Mini beveling (0.4 to 0.7 mm) (0.1 mm increments)
• Frame changing

Setting range:

• FPD: 30.00 to 99.50 mm (0.50 mm increments)
• PD: 30.00 to 99.50 mm (0.50 mm increments)
• 1/2PD: 15.00 to 49.75 mm (0.25 mm increments)
• Optical center height: 0 to ±15.0 mm (0.1 mm increments)
• Size adjustment: 0 to ±9.95 mm (0.05 mm increments)
• Bevel position: 0 to ±15.0 mm (0.1 mm increments)

Minimum grinding size:

• Flat edging: ø32.0 x 19.5 mm / with mini cup (optional) ø22.0 x 17.4 mm
• Bevel edging: ø33.0 x 21.0 mm / with mini cup (optional) ø23.0 x 18.4 mm
• Safety beveling (flat): ø34.5 x 21.5 mm / with mini cup (optional) ø24.5 x 19.9 mm
• Safety beveling (bevel)*2: ø35.5 x 22.5 mm / with mini cup (optional) ø25.5 x 20.9 mm
• Grooving*2: ø32.0 x 19.5 mm / with mini cup (optional) ø22.0 x 17.4 mm

Frame tracing (built-in):

• Method: Automatic 3D binocular tracing
• FPD measurement: Available
• Frame clamping: One-touch automatic clamping
• Setting of stylus: Switchable between automatic and semiautomatic
• Measuring points: 1,000 points
• Measurement accuracy: Frame tracing ±0.05 mm

Wheel configuration:

• Type PC, PL-4, PLB, PLB-2R

Power supply:

• 100 to 120 V AC or 230 V AC
• 50/60 Hz

Power consumption:

• 1.3 kVA

Standard accessories:

• Pliable cup, Pliable cup for high base curve lenses
• Double-coated adhesive pad, Pliable cup remover
• Dressing stick for glass roughing wheel (type PL-4, PLB-2R, PC)
• Dressing stick for finishing wheel
• Compound kit for polishing wheel (type PL-4, PLB, PLB-2R)
• Pattern setting unit*3, Standard frame*3, Standard pattern*3
• Stylus cover*3, Frame support attachment*3
• Hexagonal screwdriver (2.5 mm), Hexagonal wrench (2.5, 4 mm)
• Adapter set, Spare fuse, Accessory case, Power cord
