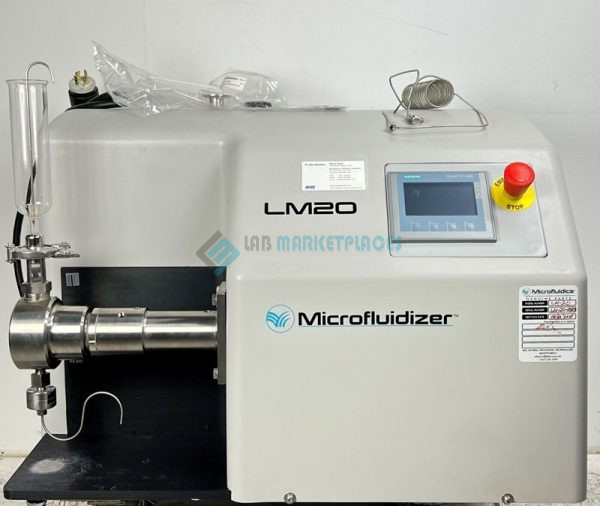

Microfluidics Microfluidizer LM20 Homogenizer High Shear Fluid Processor
The LM20 Microfluidizer high-pressure processor guarantees that all of your material receives the same treatment, producing consistently dependable outcomes such as submicron emulsions, high-yield cell disruption, and uniform particle and droplet size reduction.
Standard Features:
- Glass reservoir, 300 ml

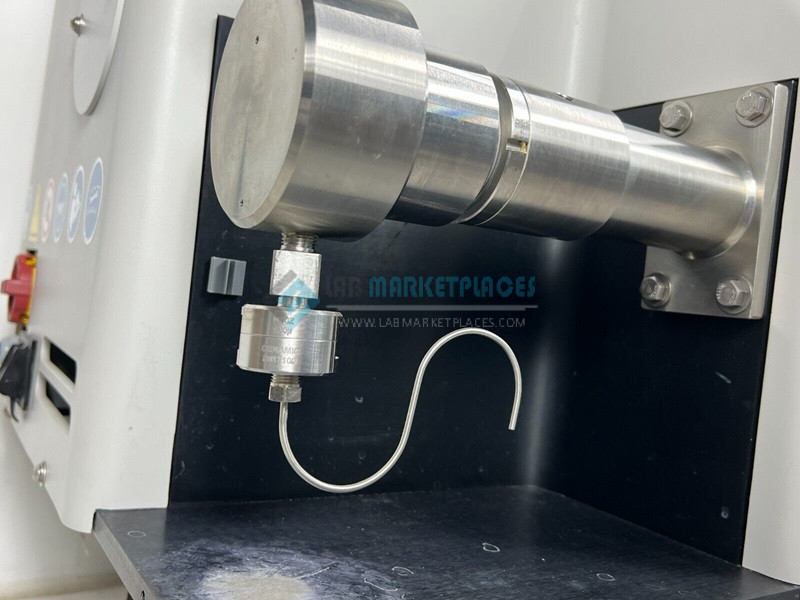

- Diamond Interaction Chamber (the LM20-20 model comes with a ceramic chamber as standard)
- Control of digital pressure
- Combined maintenance reminder and stroke counter
- Several languages (user-selectable)
Microfluidizer LM20 Technical Specifications:
- Pressure Range: Up to 30,000 psi (2068 bar)
- Minimum Sample Size: 14 ml
- Flowrate Range: 60 – 100 ml/min
- Feed Temperature: Maximum of 165°F (75°C)
- Power Requirements: 208-230/460V, 60Hz, 3PH (190-220/380-415V, 50Hz, 3PH)
- Pump Actuator: Electro-hydraulic
- Noise Level: <80dB TWA
- Dimensions: 23″H x 33″W x 26″L (58cm x 84cm x 66cm)
- Weight: 250 lbs (114 kg)
