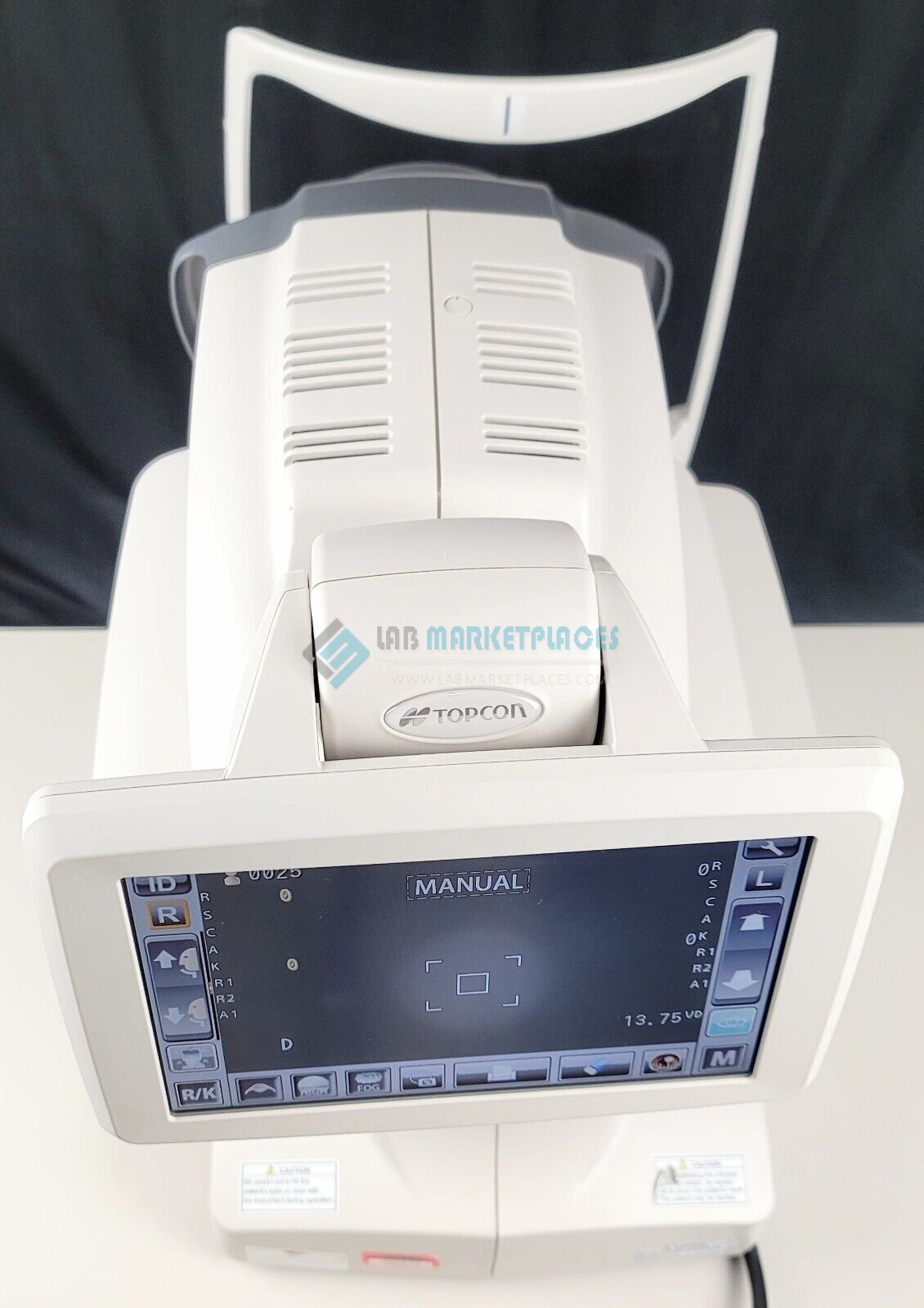

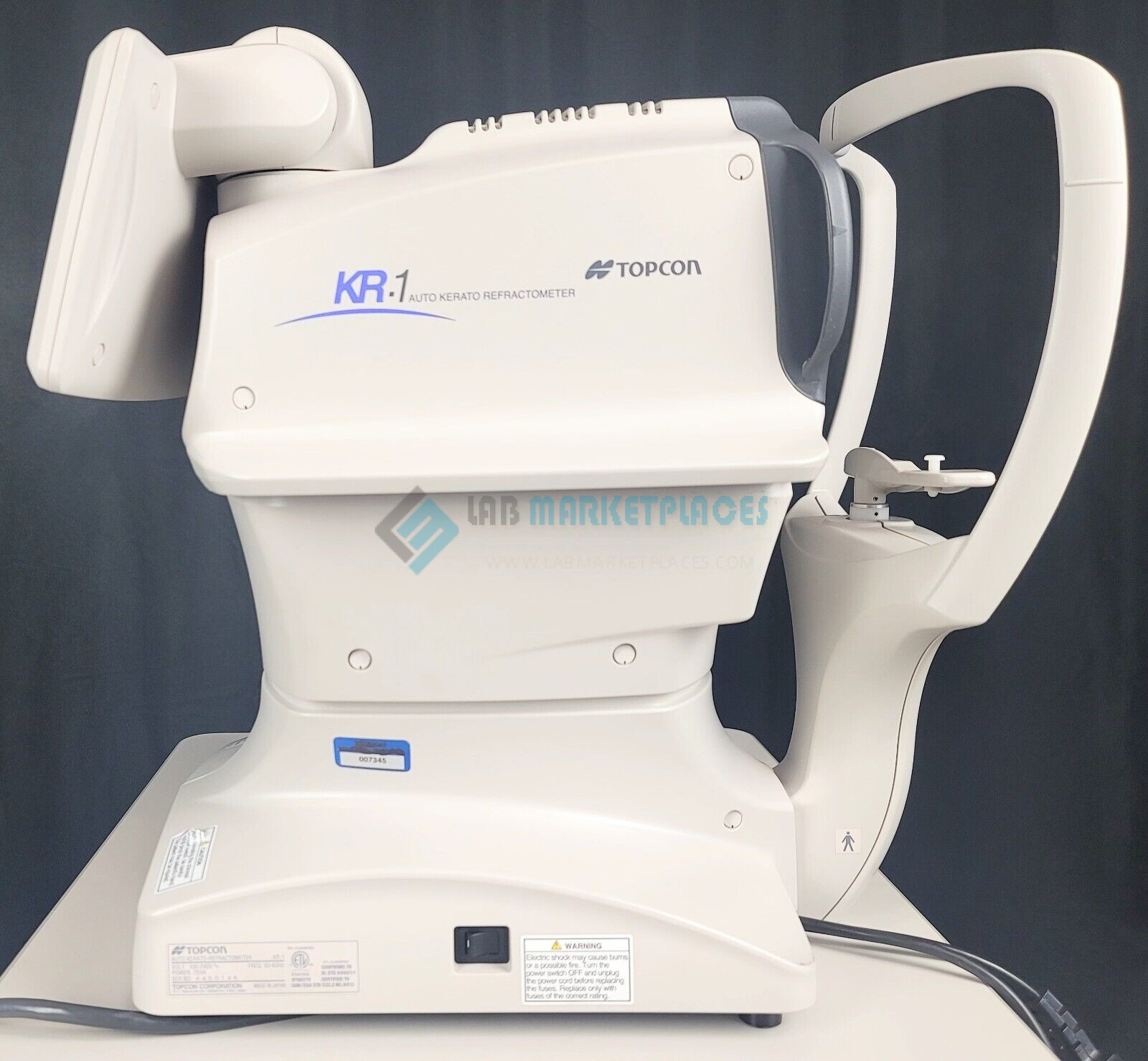

Topcon Kr-1 Auto Kerato- Refractometer Autorefractor
Fully automated operation is provided by the Topcon KR-1 Auto Corneal Refractometer, which also features a color touchscreen that is simple to operate, a monitor that rotates 360 degrees, a flexible layout, and a design that maximises space efficiency. Refraction, keratometry, and pupillometry (PD) measurements are all made possible by the rotating prism measurement equipment, which guarantees speed, accuracy, and repeatability.

FEATURES:

• The R/L automated measurement system is characterized by its simplicity and speed.The control panel is changeable and can be positioned in any direction, allowing for a flexible arrangement and saves space. 360-degree rotatable control panel
• There is no longer a requirement for a control lever thanks to the highly intuitive color touch panel.
• The design is both compact and ergonomic, providing patients with a comfortable design that includes an optical head and headrest. The body is very tiny.
• The Rotary Prism measuring system from Topcon offers accurate and consistent measurements, making it a reliable measuring tool. reliability, reproducibility, and repeatability of the outcomes

SPECIFICATIONS:

Refractive Power Measurement

• Spherical refractive power: -25D to +22D (0.12D/0.25D steps)
• Cylindrical refractive power: OD to ±l OD (0.12D/0.25D steps)*
• Astigmatic axial angle: 0° to 180° (1°/ 5°steps)
• Minimal measurable pupil diameter: (/J 2.0mm

Corneal Curvature Measurement

• Corneal curvature radius: 5.00mm to 10.00 mm (0.01mm step)
• Corneal refractive power: 67.50D to 33.75D (0.12D/0.25D steps) (corneal refractive index = 1.3375)
• Corneal astigmatic refractive power: OD to ± l OD (0.12D/0.25D steps)
• Corneal astigmatic axial angle: 0° to 180°(1°/ 5° steps)
• PD Measurement Range: 20mm to 85mm (1mm step)
• Data Transport Terminal: USB (Import), RS-232C (Export), LAN (Export)
• Dimensions: 286~326m (W) X 445~526mm (D) X 466~615 mm (H)
• Power Supply: 100-240V AC, 50-60Hz, 75VA
