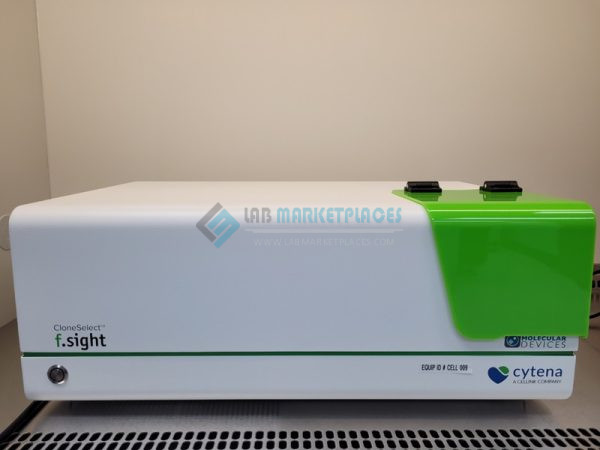

Cytena F. SIGHT CloneSelect Single Cell Isolator
Specifications:
Separate camera systems for brightfield and fluorescence imaging.
Supports most common green dyes (GFP, FITC, CT-Green, DyLight, Calcein AM and more).
Detects even low-intensity dye and low copy numbers.
Samples: Eukaryotic cells
Cell Size: 5 – 40 µm
Sorting: Cell morphology and fluorescence
Droplet Volume: ~200 pL
Substrate: 96 and 384 well plates
Nozzle Imaging: Camera CMOS, Magnification 10x, Dual Channel Brightfield and Fluorescence
Fluorescence Nozzle Imaging: Ex. 488 nm, Em. 520 +/- 36 nm
Single Cell Processing Times: 96 Well – 5 min. / 384 Well – 15 min.
Cartridge: 40 µm disposable cartridge
Embedded Computer: Windows
Compatibility: Standard Class II BioSafety Cabinets
Footprint: 23.62 x 15.75 x 9.44 in.
Weight: 78.26 lbs.
Certification: CE, CB, UL (TÜV), RoHS
Mfg. Year: 2020
