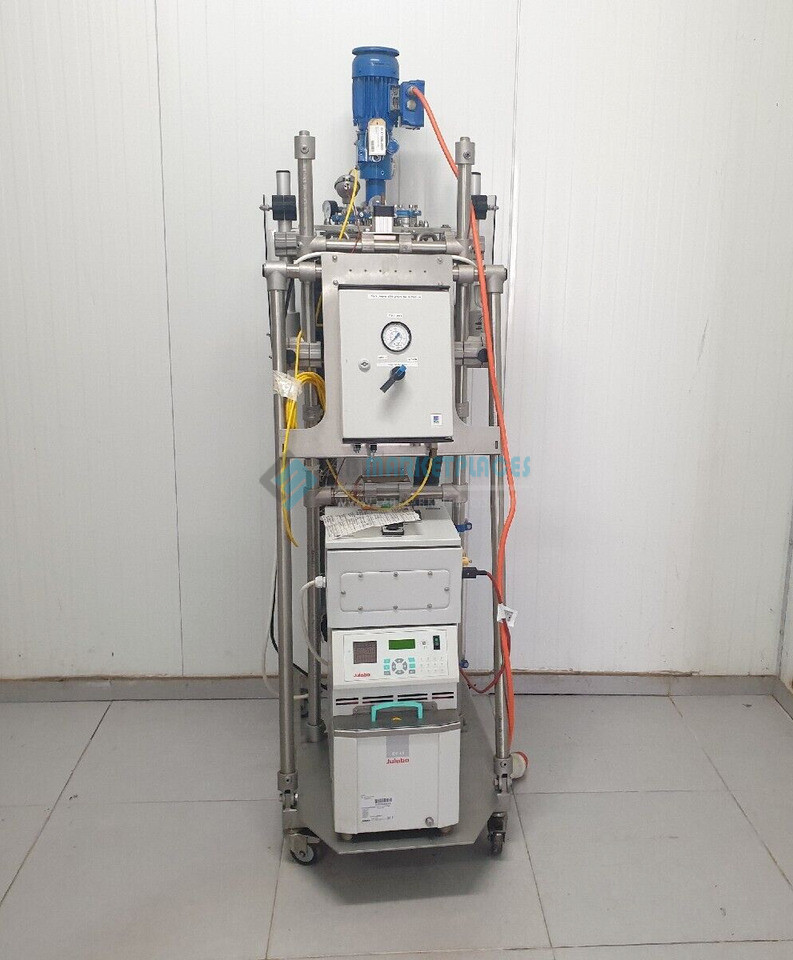

Buchi miniPilot 5-c 5 liter pilot glass reactor w/ julabo cf41 chiller w/ spares

We provide mini-plants for kilo-scale manufacturing, process simulation, scale up, and chemical process development with the miniPilot product family (Reactor, Nutsch filter, and scrubber).

Inert materials and the reactor’s explosion-proof design (ATEX) enable the safe processing of acids and solvents in a fully sealed reaction vessel. Since there are interchangeable stirrers and reaction vessels with capacities of 5, 10, and 15 liters, the small standard reactor configuration is easily adaptable.

2015* Buchi miniPilot 5-c liter pilot glass reactor w/ julabo cf41 chiller w/ spares and manual

• Glass reactor: 5 liter
• Pressure: -1.0 (FV) to +1.0 bar
• Temperature: -60 °C (optional -90 °C) to +200 °C
• Material: Borosilicate glass 3.3, PTFE, PFA, PEEK
• Small scale pilot range for high performance applications
• With the miniPilot mini-plants for chemical process development, scale up, process simulation and kilo-scale production.
• Small scale pilot range for high performance applications

Standard package:

• 5 liters jacketed glass reactor, interchangeable
• Baffle with Pt100 temperature sensor
• Continuous adjustable agitator speed, 0-600 rpm
• Dry running mechanical seal
• Compact stainless steel frame, table or floor model, mobile
• ATEX Zone 1 (0) / CE / cGMP
• CIP capable
• FDA conform, highly corrosion resistant
• Complete documentation
