BioTek Cytation 3 Cell Imaging MultiMode Microplate Reader
The Cytation3 is a multi-mode reader for cell imaging. Fluorescence intensity (FI), fluorescence polarization (FP), time-resolved fluorescence (TRF), luminescence, UV-visible absorbance, and imaging are among the Cytation3 detection modes, depending on the model. For additional information, get in touch with BioTek Customer Care. The instrument is modular, and there are upgrade possibilities available.

Gen5 software controls every aspect of the reader’s functioning, including data reduction and processing. The Cytation3 is compatible with the BioTek BioStack 3 Microplate Stacker and is accessible by robot. To make it easier to integrate the Cytation3 into an automated system, Gen5 supports OLE automation.

Features:

• One device that combines automated digital microscopy and/or multi-mode microplate detection
• Upgradable and modular: microplate reading only, microscopy only, or both
• Sample format flexibility: supports T25 cell culture flasks, microscope slides, and 6- to 384-well plates.
• Automated XY stage, auto focus, auto exposure, automated image capture, and auto LED intensity are examples of inexpensive automation.
• Bright field microscopy and inverted fluorescence with four LED and filter cube assembly capacities
• From 2x for full-well imaging to 20x for intracellular details with sub-micron resolution
• High-quality photos: Semrock filters, 16-bit grayscale CCD camera, and Olympus objectives
• Temperature control up to 45 °C
• CO2/O2 gas control and monitor accessory
• For inject/read tests, a dual reagent injector accessories
• Time-lapse, montage, and end point assays
• Image statistics, subpopulation analysis, and automatic cell counting
• Microplate reading mode using patented hybrid technology that combines high-performance filter-based optics with high-flexibility monochromator optics

BioTek Cytation 3 Cell Imaging Specifications:

Microplates

• The Cytation3 accommodates standard 6-, 12-, 24-, 48-, 96-, and 384-well microplates with 128 x 86 mm geometry, Take3 and Take3 Trio Micro-Volume Plates, microplate slides, and T25 cell culture flasks. Maximum Plate Height: 1.0″

Hardware and Environmental

Light Source

• Absorbance, Fluorescence (FI), monochromatorbased: Xenon flash light source, 20W maximum average power (not user-changeable)
• Fluorescence (FI/FP), filter based: Xenon flash light source, 5W maximum average power (not user-changeable)
• TRF (filter-based): Xenon flash light source, 5W maximum average power (not user-changeable)
• Weight: With all modules installed, without power supply or dispense module attached, < 80 lbs. (36.3 kg)
• Humidity: 10% to 85% relative humidity (non-condensing)
• Power Supply: 24-volt external power supply compatible with 100–240 V~; +/-10% @50–60 Hz
• Power Consumption: 130W maximum

Unit turns right on when plugged in. Comes with Power cord.

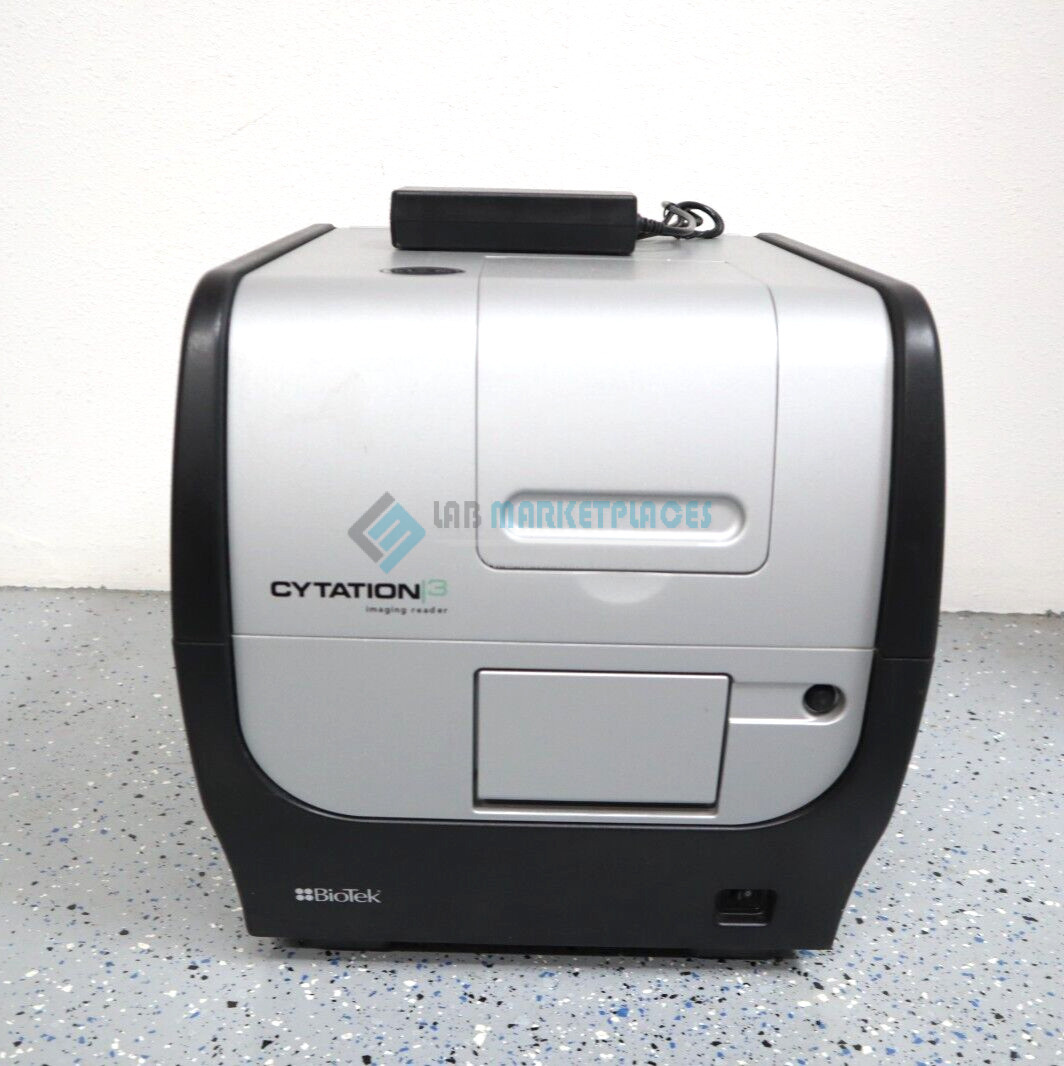

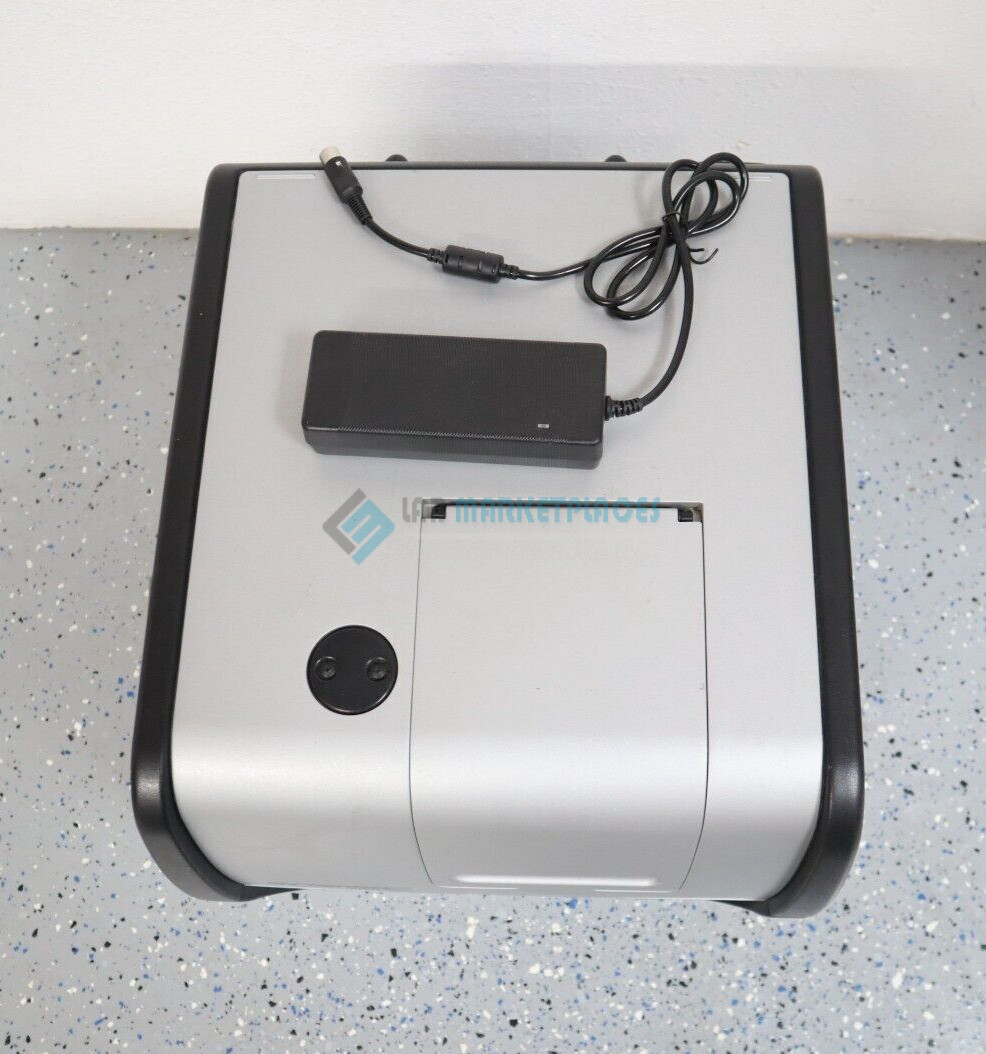

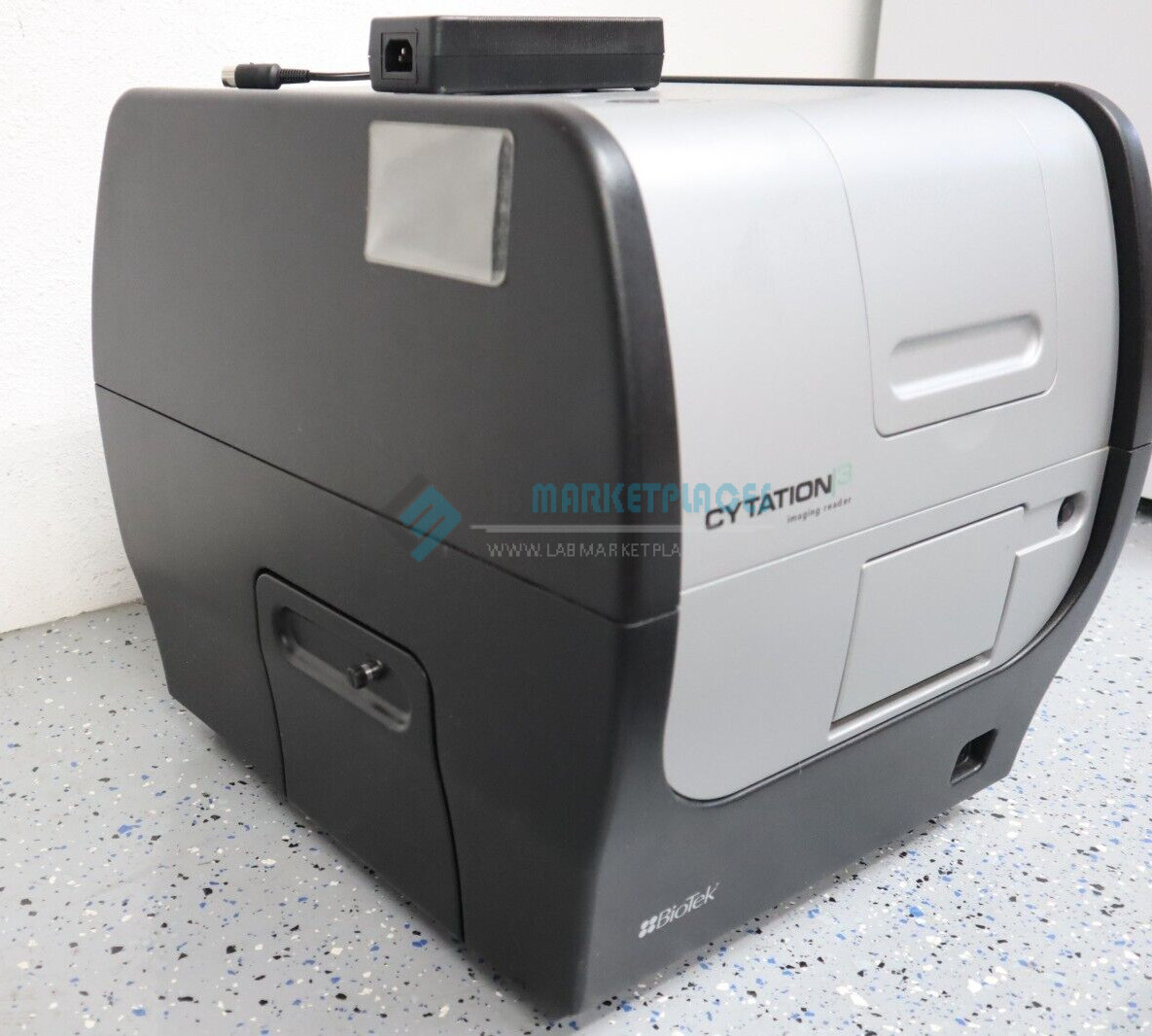

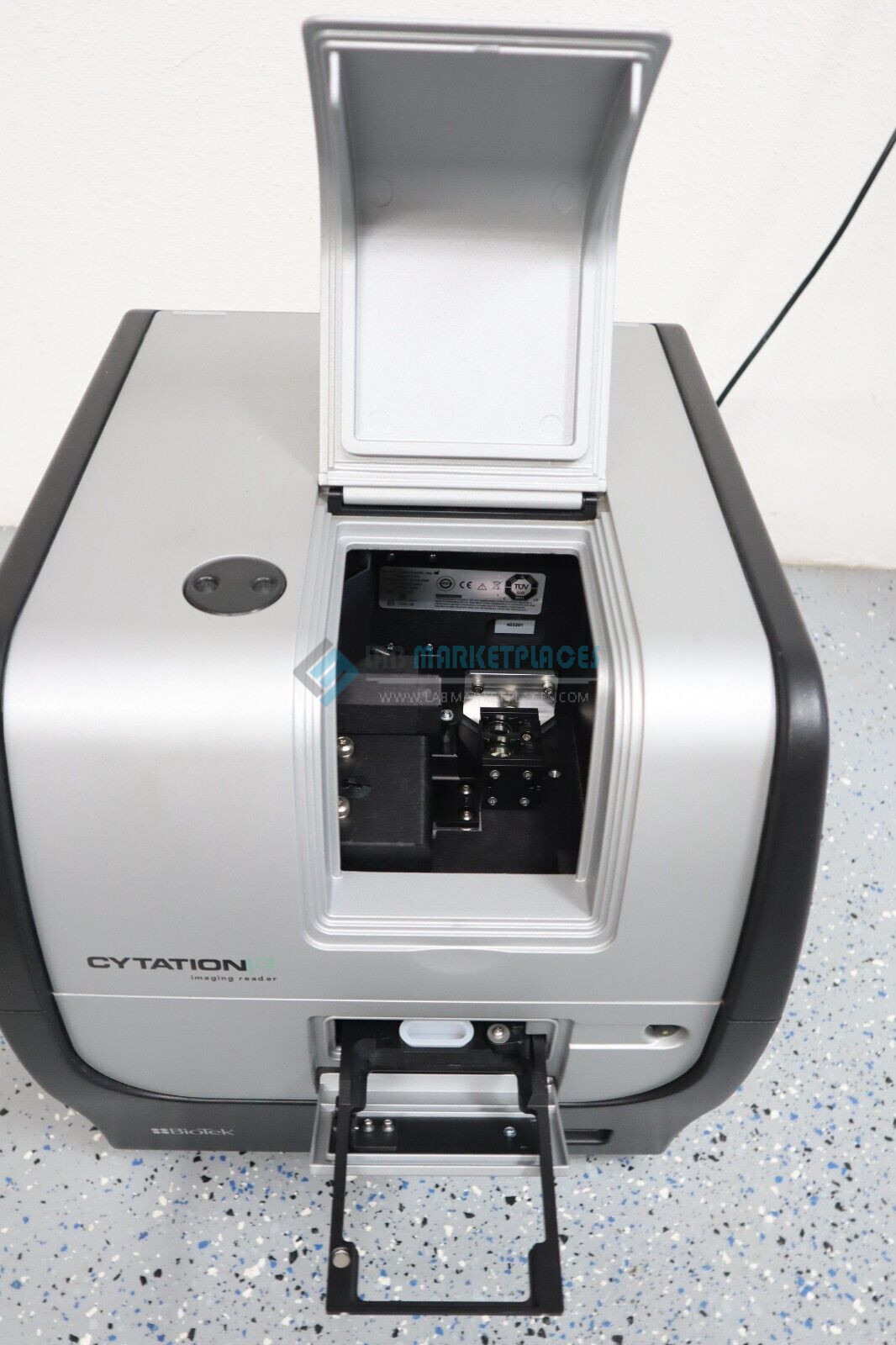

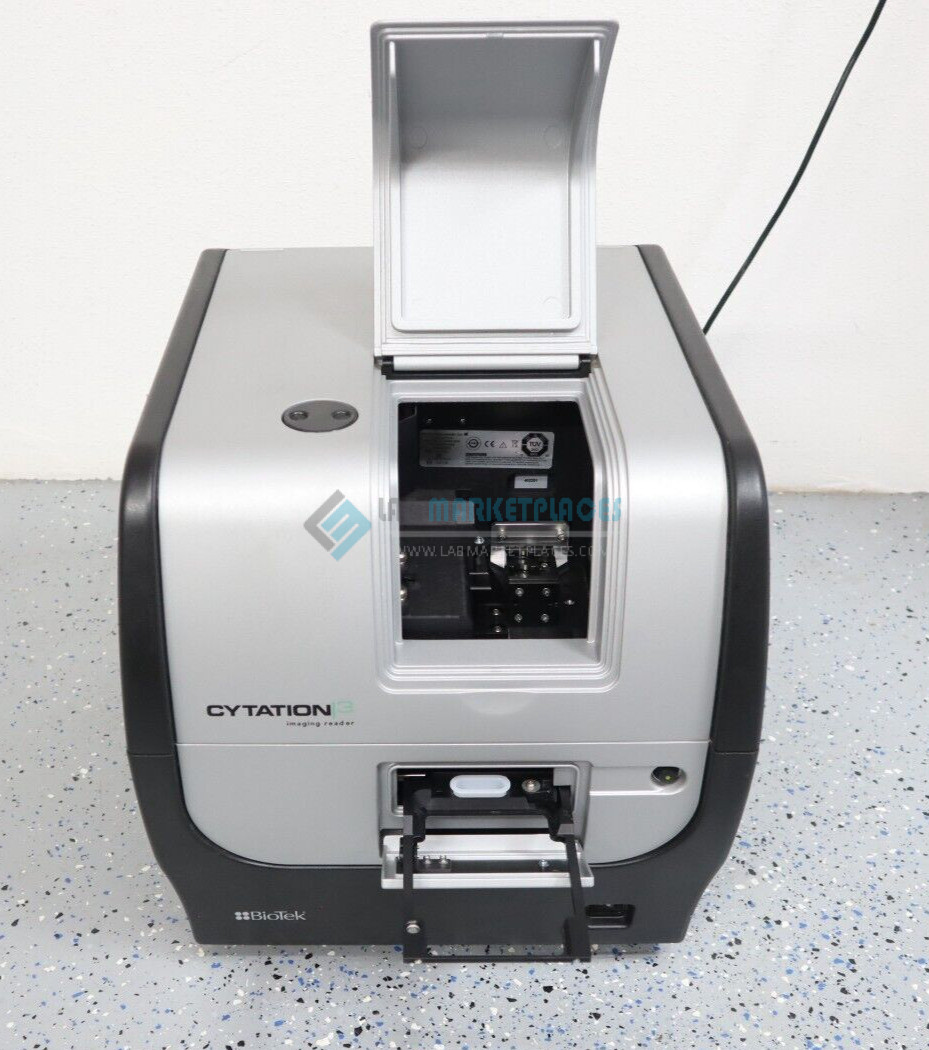

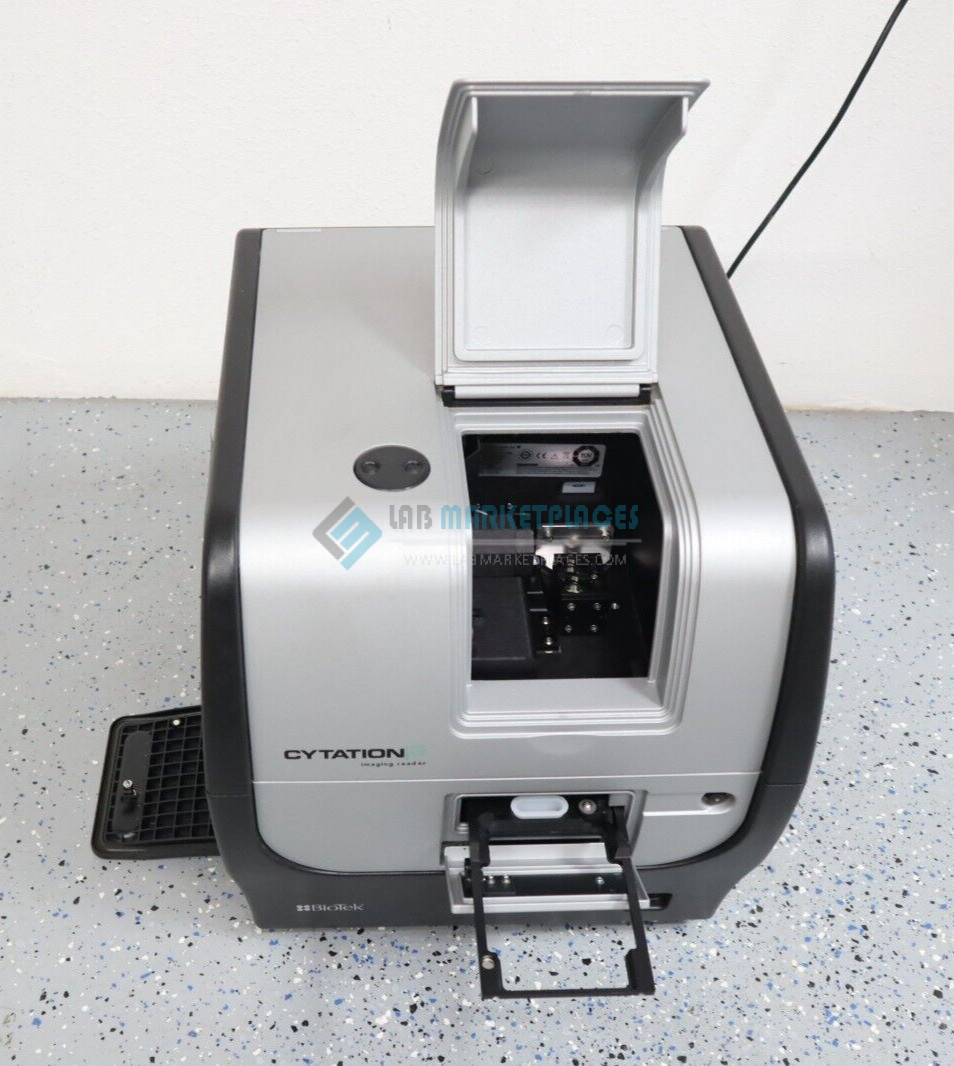

Outer case has some scratches from normal use. See all photos.

100% Authentic.
